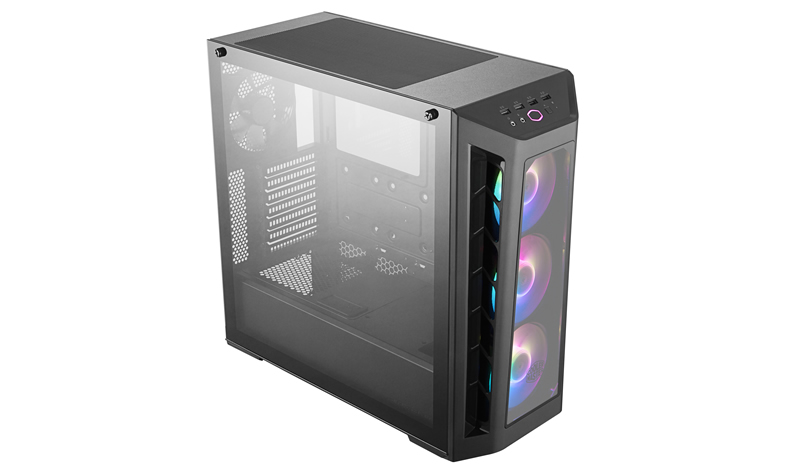

| Product Name |
MasterBox MB530P |
| Model number |
MCB-B530P-KHNN-S01 |
| Available Color |
Black |
| Materials |
Steel, Plastic, Tempered Glass |
| Dimensions (L x W x H) |
489 x 229 x 469mm |
| Motherboard Support |
ATX, Micro-ATX, Mini-ITX |
| Expansion Slots |
7 |
| 5.25" Drive Bays |
N/A |
| 3.5" Drive Bays |
2 |
| 2.5" Drive Bays |
4 |
| I/O Panel |
USB 3.0 x 2, USB2.0 x2,Audio In / Out, ARGB control button |
| ARGB Controller |
ARGB Controller included |
| ARGB Cable |

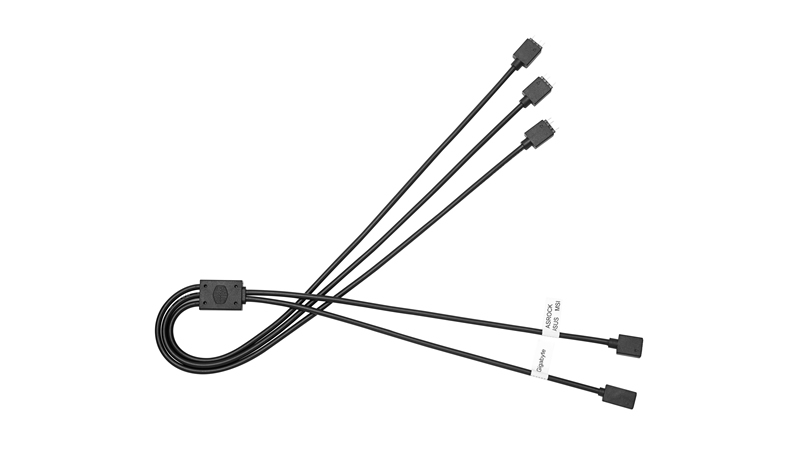

2 to 3 ARGB Splitter cable included |
| Pre-installed Fan(s) |

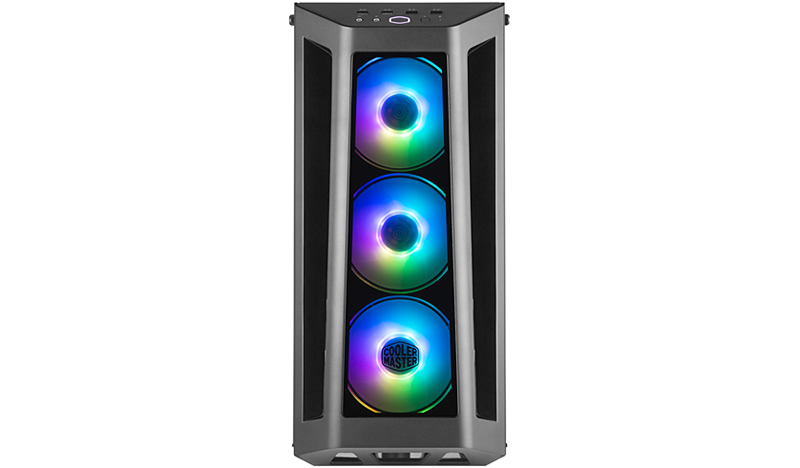

Front: 120mm ARGB AB fans x 3 (9 blades fan 1200rpm)
Rear: 120mm Non-Led fan x 1 (7 blades fan 1200rpm) |
| Fan Support |
Front: 120mm x 3 / 140mm x 2
Top: 120mm x 2 / 140mm x 2
Rear: 120mm x 1 |
| Radiator Support |
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 240mm
Rear: 120mm |
| Clearances |
CPU Cooler: 165mm / 6.49"
PSU: 180mm / 7.08"
Graphics card: 410mm / 16.14" |
| Cable Routing |
Behind M/B Tray space: 18-25mm |
| Dust Filters |
Front, Top, Bottom |
| Power Supply Support |
Bottom Mount, ATX |
| EAN Code |
4719512074640 |
| UPC Code |
884102047138 |
