| Product Name |

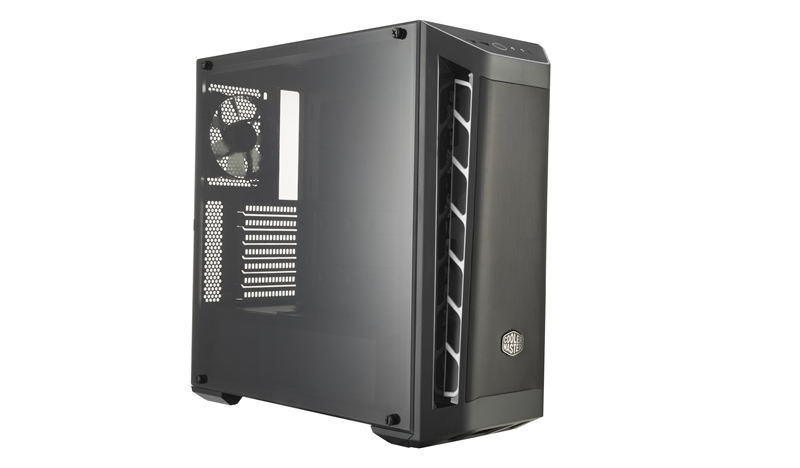

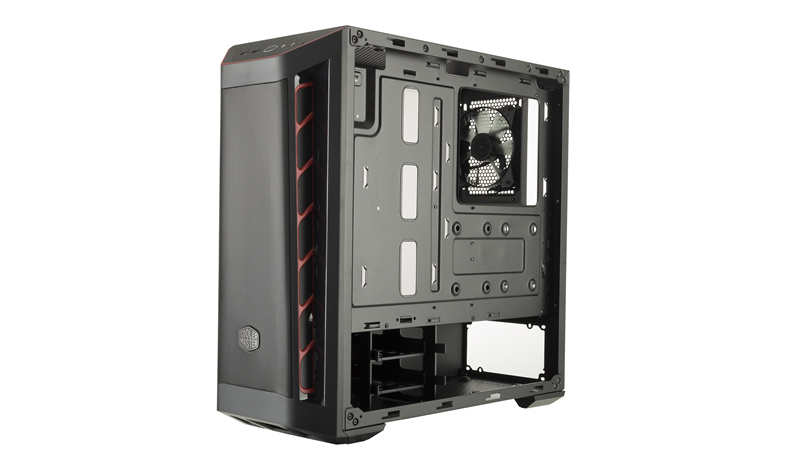

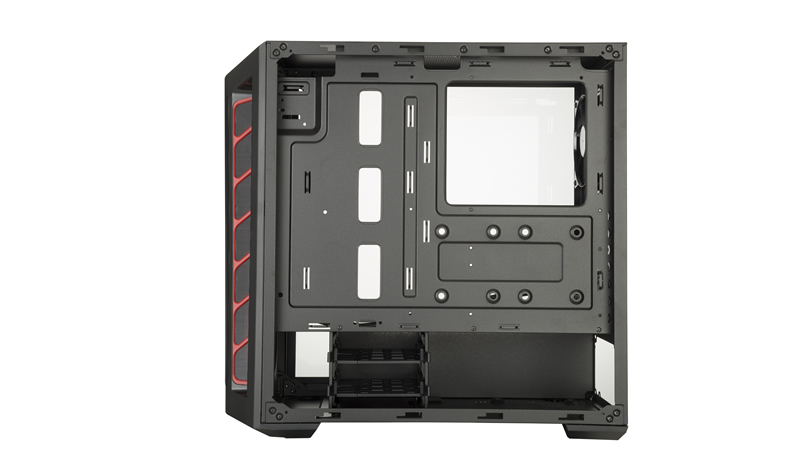

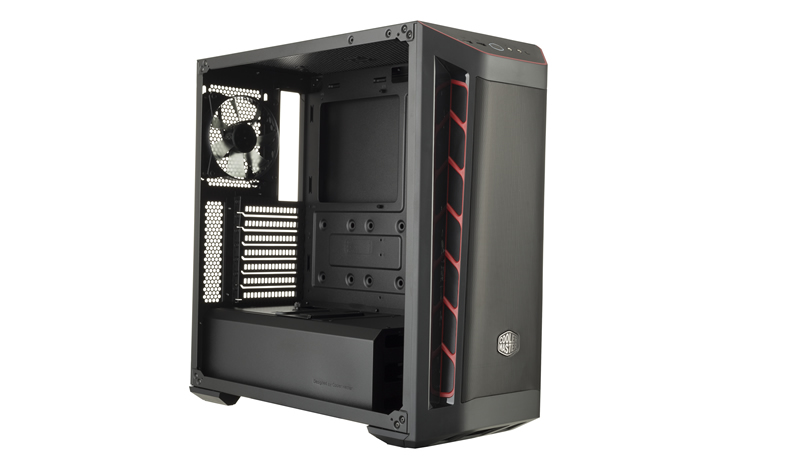

MasterBox MB511 |
| Model number |
MCB-B511D-KANN-S00 (Red)
MCB-B511D-KANN-S01 (Black)
MCB-B511D-KANN-S02 (White)
MCB-B511D-KANN-S03 (Blue) |
| Available Color |
Black
*partial region on front panel: red/black/white/blue |
| Materials |
Steel, Plastic |
| Dimensions (L x W x H) |
496 x 217 x 469 mm |
| Motherboard Support |
ATX (up to 272mm width), Micro-ATX, Mini-ITX |
| Expansion Slots |
7 |
| 5.25" Drive Bays |
No |
| Combo 3.5"/2.5" Drive Bays |
2 (Max. 2) |
| SSD Drive Bays |
5 (Max. 6) |
| I/O Panel |
USB 3.0 x 2, Audio In / Out |
| Pre-installed Fan(s) |
Rear: 120mm x 1 |
| Fan Support |
Top: 120mm x 2 / 140mm x 2
Front: 120mm x 3 / 140mm x 2
Rear: 120mm x 1
|
| Liquid Cooling Support |
Front: 120 / 140 / 240 / 280 / 360mm radiator. (75mm clearance)
Top: 120 / 240mm
Rear: 120mm
|
| Clearances |
CPU Cooler: 165mm / 6.49"
PSU: 180mm / 7.08"
GFX: 410mm / 16.10"
|
| Cable Routing |
Behind MB Tray: 19mm / 0.74" |
| Dust Filters |
Front, Top, Bottom |
| Power Supply Support |
Bottom mount, ATX |
| EAN Code |
4719512072226 (MCB-B511D-KANN-S00, Red)
4719512072301 (MCB-B511D-KANN-S01, Black)
4719512072318 (MCB-B511D-KANN-S02, White)
4719512072325 (MCB-B511D-KANN-S03, Blue) |
| UPC Code |
884102044724 (MCB-B511D-KANN-S00, Red)
884102044793 (MCB-B511D-KANN-S01, Black)
884102044809 (MCB-B511D-KANN-S02, White)
884102044816 (MCB-B511D-KANN-S03, Blue) |
