| Product Name |

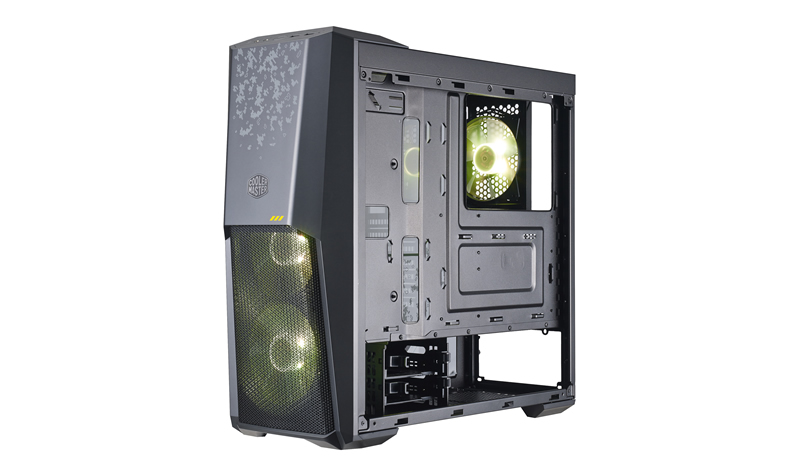

MasterBox MB500 TUF Edition |
| Model Number |
MCB-B500D-KGNN-TUF |
| Available Color |
Black |
| Materials |
Steel, Plastic, Tempered Glass |
| Dimensions (LxWxH) |
494 x 211 x 475mm |
| Motherboard Support |
ATX, Micro-ATX, Mini-ITX |
| Expansion Slots |
7 |
| Drive Bays |
5.25" |
N/A |
| 3.5" HDD |
2 (Max. 2) |
| 2.5" SSD |
2 (Max. 4) |
| I/O Panel |
USB 3.0 x 2, Audio in / out |
| Pre-installed Fan(s) |
Front |
120mm x 2 RGB LED fan |
| Rear |
120mm x 1 RGB LED fan |
| Fan Support |
Front |
120mm x 3 / 140mm x 2 |
| Rear |
120mm x 1 |
| Top |
120mm x 2 |
| Radiator Support |
Front |
120 / 140 / 240 / 280 / 360mm radiator (limited) up to 50mm thickness without fan |
| Rear |
120mm x 1 |
| Clearance |
CPU Cooler |
163mm |
| PSU |
180mm |
| GPU |
400mm |
| Cable Routing |
Behind MB Tray |
15mm - 23mm / 0.59" - 0.90" |
| Dust Filters |
Front, Bottom |
| Power Supply Support |
Bottom mount, ATX |
| EAN code |
4719512071090 |
| UPC code |
884102043598 |
